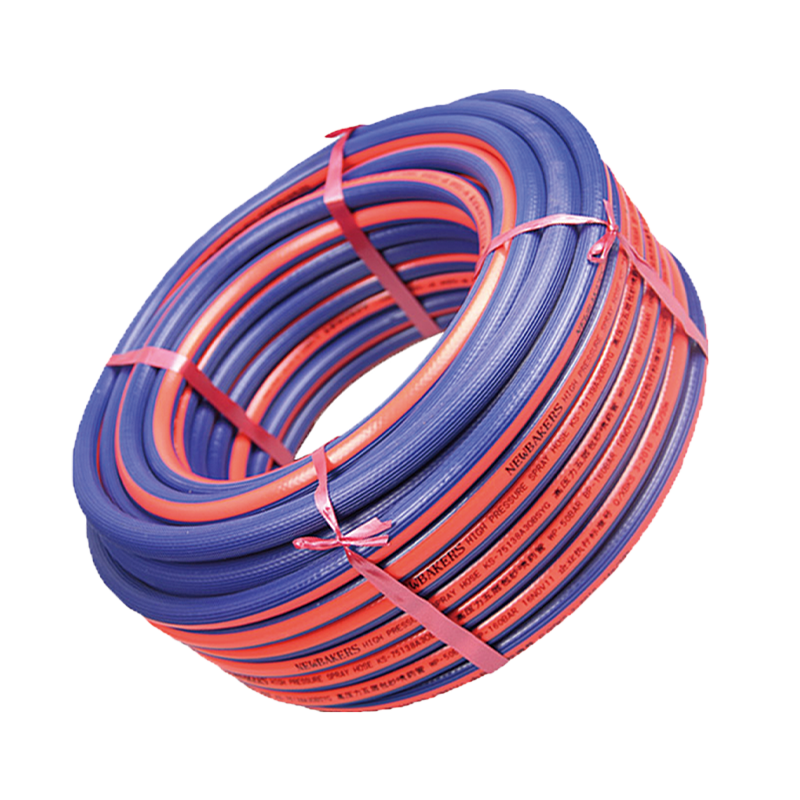

PVC Agricultural Spray Hose
Built for high pressure and harsh chemicals, reliable in the field.
| Product Name: | PVC Agricultural Spray Hose | ||||||||||
| Material: | High-quality PVC + High-strength fiber cord | ||||||||||
| Construction: | 5-Layer Structure (3 layers of PVC and 2 layers of high tensile polyester fiber) | ||||||||||
| Applicable temperature: | -10˚C~70˚C | ||||||||||
| Application: | Agricultural spraying, Pesticide & Chemical delivery, and Special industrial use | ||||||||||
| Features: | High-pressure resistant, Anti-abrasion, Anti-aging, Flexible, Durable, Weather and UV resistant | ||||||||||
| Product Code | ID | OD | Wall Thickness | WP | BP | COIL | PKG | ||||
| mm | inch('') | mm | mm | bar | psi(bar*15) | bar | psi | Length/Mtrs | Weight/kg | L*W*H/cm | |
| KS-75138ASYG3M | 7.5 | 5/16 | 13.8 | 3.15 | 40 | 600 | 120 | 1800 | 30 | 4.14 | 30*30*11 |
| KS-75139ASYG50M | 7.5 | 5/16 | 13.8 | 3.15 | 40 | 600 | 120 | 1800 | 50 | 6.9 | 36*36*12 |
| KS-75140ASYG60M | 7.5 | 5/16 | 13.8 | 3.15 | 40 | 600 | 120 | 1800 | 60 | 8.28 | 37*37*12 |
| KS-75141ASYG100M | 7.5 | 5/16 | 13.8 | 3.15 | 40 | 600 | 120 | 1800 | 100 | 13.8 | 47*47*12 |
